In the global shipping and logistics industry, skeleton semi trailer play a vital role in the seamless transfer of containers between different modes of transportation, such as ships, trains, and trucks.

Skeleton semi trailers are specialized for the transportation of shipping containers. Their unique design consists of a lightweight yet sturdy frame that is specifically configured to carry standard - sized containers. The absence of a solid deck or sides reduces the weight of the trailer, improving fuel efficiency while maintaining high load - carrying capacity.

Skeleton semi trailers feature twist - lock mechanisms that securely fasten the containers to the trailer, preventing any movement during transit. They are highly maneuverable, making them suitable for use in ports, intermodal yards, and on highways.

2-axle skeleton semi-trailer designed for container transport, supporting 40-60T payload and 20ft/40ft containers. Made of Q345B carbon steel, it measures 12500×2500×1550mm with 12R22.5 tires and 28T JOST landing gear. Equipped with mechanical/air suspension, WABCO brake valves, and 8-12 container locks for stability. Sandblasted chassis with anticorrosive painting ensures durability. Customizable in color and logo, factory-direct with 12-month warranty.

Composition Specifications

Name 20 ft 40ft 45 tons skeleton container truck semi trailer

Main beam Q345Steel; beam height is 500mm;

Upper plate;14mm;

Middle plate is 8mm;

Down plate is 16mm.

Dimensions(L*W*H) 12500*2500*1600mm

Loading Capacity 40T

Certification BV/ ISO/ CCC

OEM No. 370112200313

King Pin JOST Brand 2"(50mm)or3.5"(90mm)

Container Lock TNT 12pcs

Function 20ft 40ft container and cargo carrier

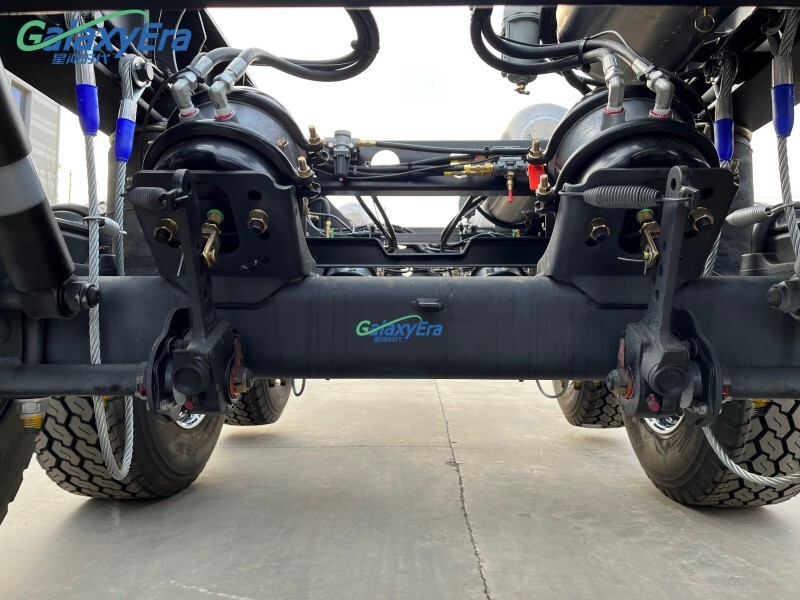

Suspension type Mechanical or Air Suspension

Axle BPW/Fuwa/Starway brand 3*13T

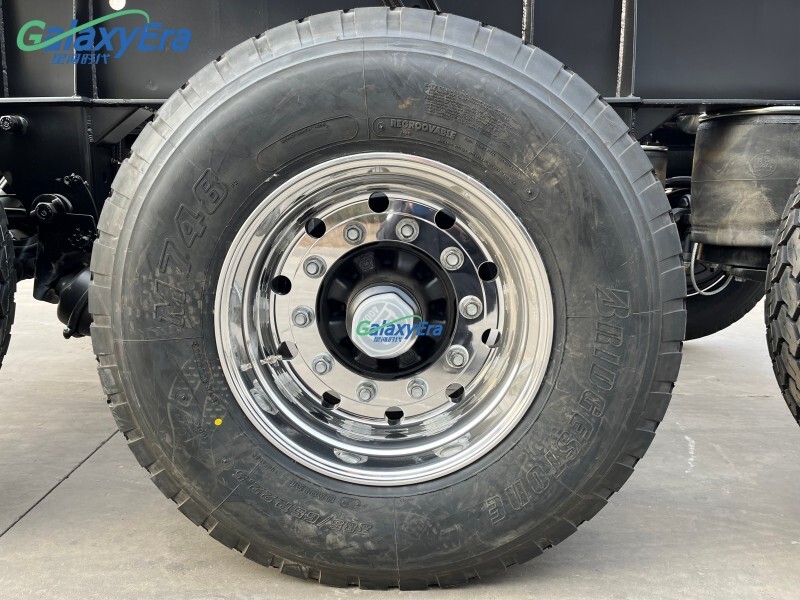

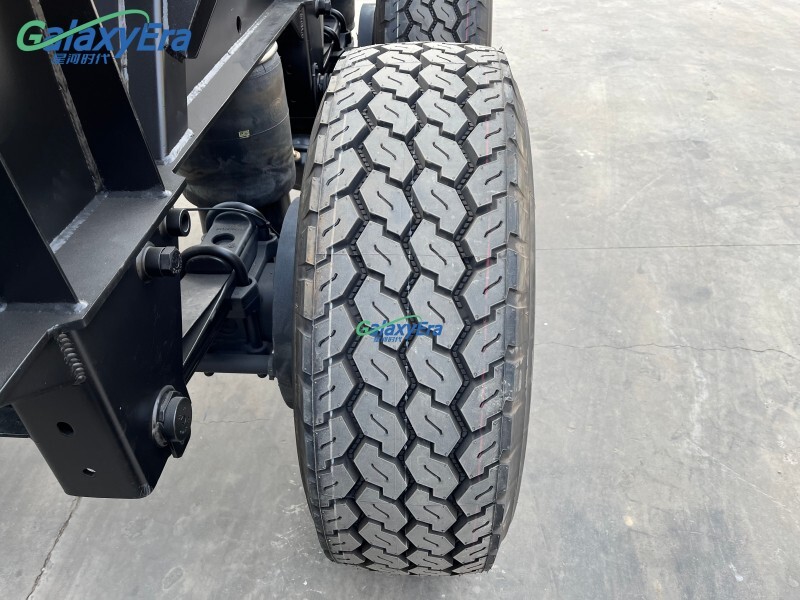

Tire 12R22.5x12

Brake Valve WABCO

Chassis Q345B

Twist lock 12sets

King Pin 2” or 3.5” traction pin

Packing & shipping

Nude and wax, shipped in bulk cargo ship, flat deck or RO-RO

(1)Wax:

Do wax spray process to against the trailer body suffer seawater corrosion during shipping.

(2)Package:

Stable fixing with steel wire,to protect the trailer during shipping.

(3)Shipping:

Reliable logistic service from famous freight supplier makes transport process safely and promptly.

Stain Proofing

Sand blasting with twice anticorrosive prime

Tire specification

12R22.5/12.00R20/12.00R24

Brake air chamber:Six big air chamber

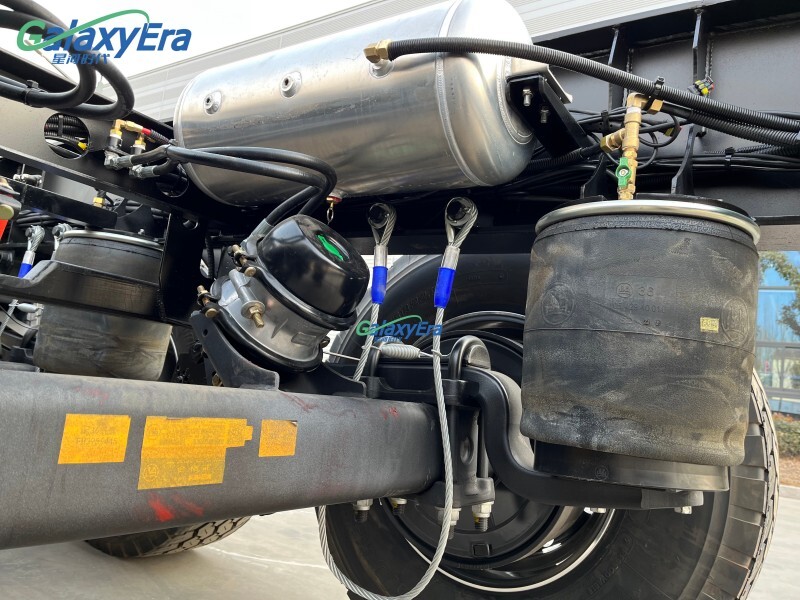

Suspension:Mechanical Suspension/Air Suspension

Brake System:WABCO valve and relay

Product name:gooseneck semi trailer

Place of Origin:Shandong, China

Max Payload:60 ton

Size:12500*2500*1550 mm

Material:Steel

Type:Semi-Trailer

Use:Truck Trailer

Container Lock:8-12 units

Axle Brand:13T/16T FUWA,BPW or optional

King pin:2"(50mm)or3.5"(90mm) JOST

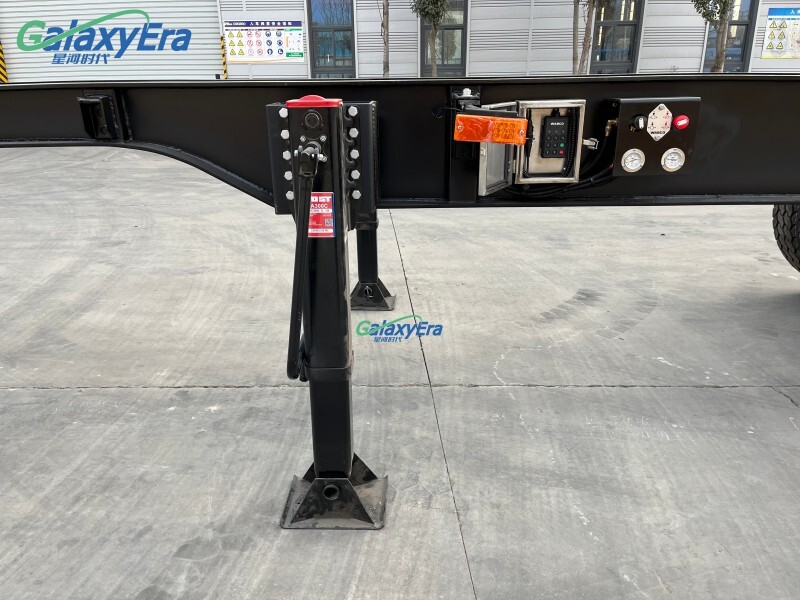

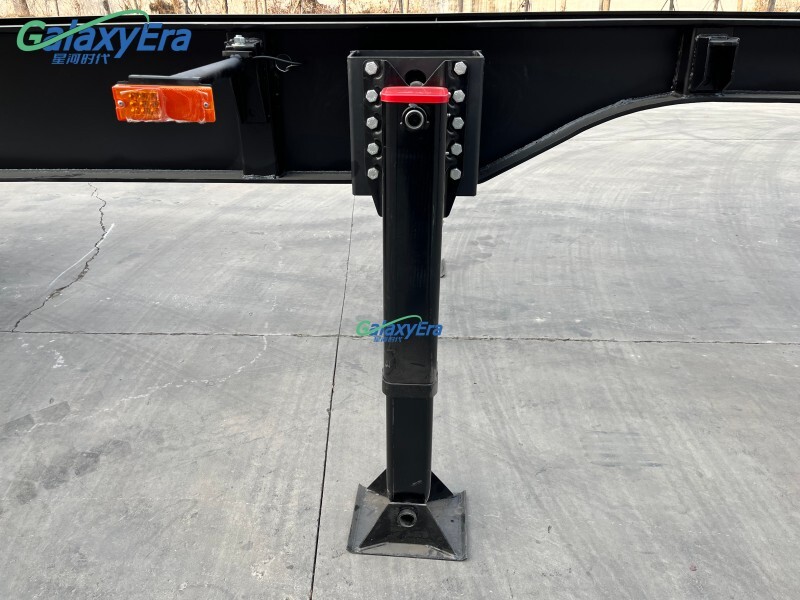

Landing Gear:Standard 28Ton Dual Speed
