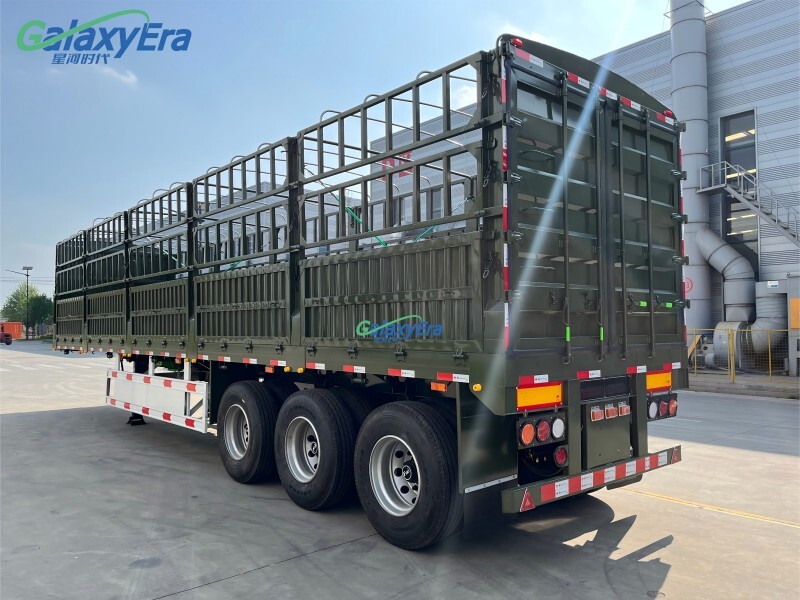

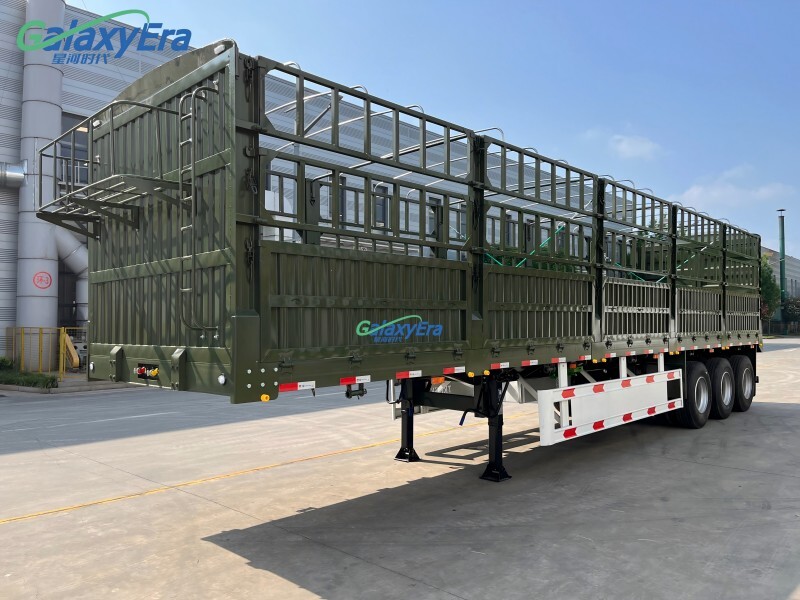

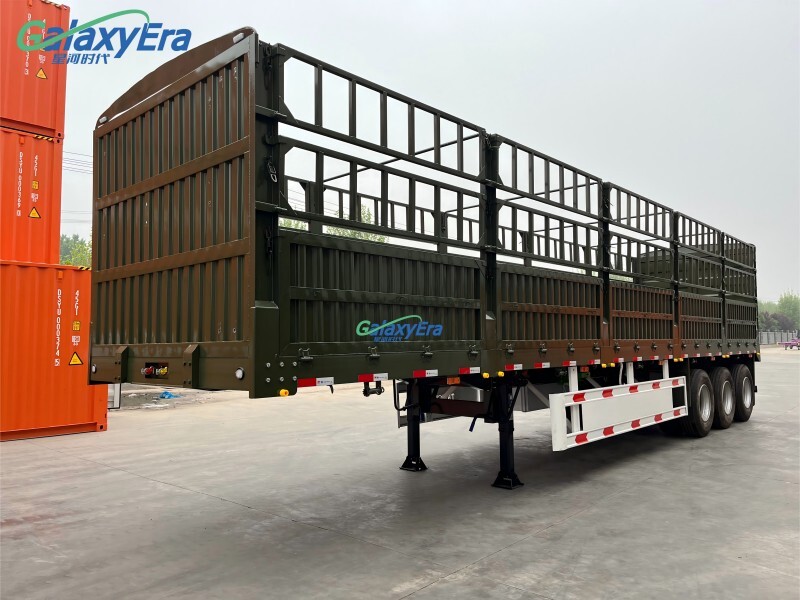

fence semi trailer

The 3 axle semi cargo trailer for sale is rated to carry a maximum payload of 60 tons. This makes it ideal for transporting heavy equipment, construction materials, and other bulky items.

A 4 axle fence cargo truck trailer is a specialized type of trailer designed for transporting various types of cargo, particularly those that need to be secured and protected during transit.

Fence semi trailer are mainly used to transport bulk goods such as coal, ore, grain and other bulk items. Livestock trailer for sale is also suitable for transporting various goods that require protection, such as construction materials and agricultural products.

The upper structure features removable columns and railings to meet the transport needs of various cargoes.

It can transport both bulk cargo (such as coal, sand, and grain) and piece goods (such as boxed and bagged goods).

It can be customized to meet customer needs in various configurations, including flatbed, fence, and removable railings.

The main beam is constructed of high-strength manganese steel or carbon steel, featuring robust welding and high load-bearing capacity.

The floorpan is constructed of non-slip patterned steel, offering strong impact and wear resistance, extending the vehicle's service life.

The thickened and reinforced columns effectively enhance the vehicle's torsional and seismic resistance.

Equipped with a non-slip floor, secure lashing points, and sturdy posts to prevent cargo from sliding or tipping over.

Optional safety features such as ABS and pneumatic braking enhance driving stability.

The height of the fence can be customized based on cargo type, ensuring safer and more reliable transportation.

Customizable services are available based on individual user needs:

Carriage Length: 10.5m, 13m, 17.5m (customizable)

Rack Height: 0.8m to 1.5m (optional)

Axles: 2/3/4 (optional)

Tire Type: 12R22.5 / 11.00R20 (tubeless or wire-wire available)

Braking System: WABCO air brakes / ABS (anti-lock braking system)

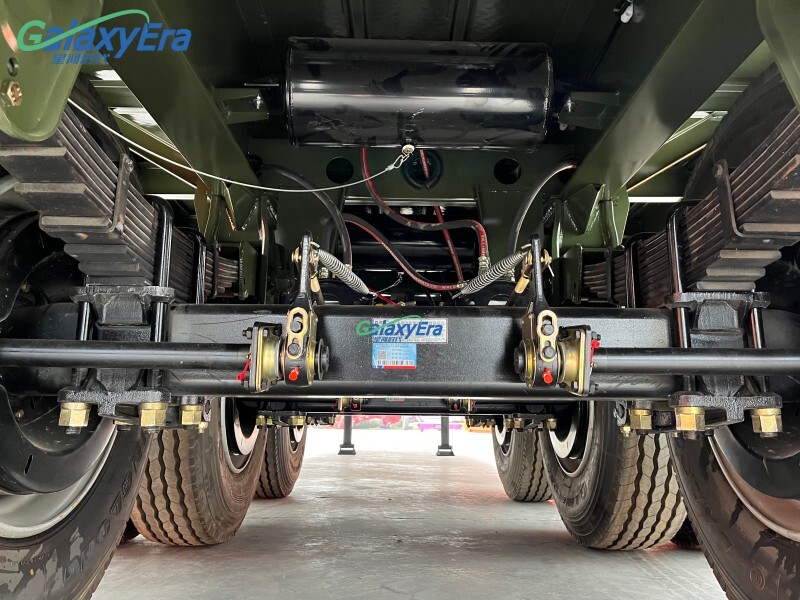

Suspension: Air suspension / mechanical suspension (optional)

Dimensions: 13,000 mm × 2,500 mm × 3,550 mm (customizable)

Curb weight: Approximately 6.8 tons (varies slightly depending on configuration)

Maximum load capacity: 30-60 tons

Floor thickness: 3-6 mm (optional)

Main beam material: Q345B high-strength steel

Girder height: 800 mm / 1,000 mm / 1,200 mm (optional)

Axles: 3 (13-ton American/German axles)

Suspension: Heavy-duty mechanical suspension / Air suspension (optional)

Tire size: 12R22.5 / 11.00R20 (12 tires)

Braking system: Dual-line air brake with ABS

Drawbar: 50# / 90# (optional)

Outriggers: 28T dual-speed

Paint: Electrophoretic anti-rust treatment + high-temperature paint

 Agricultural Transportation: Used for transporting grain, vegetables, fruits, and agricultural products, with excellent ventilation and moisture and mildew resistance.

 Building Materials: Suitable for transporting medium- and heavy-duty building materials such as bricks, steel, and cement, with a sturdy structure and strong load-bearing capacity.

 Light Manufacturing: Suitable for transporting standardized goods such as packaged parts, components, and equipment.

 Logistics and Distribution: Highly efficient multi-point loading and unloading, suitable for medium- and long-distance logistics and distribution.

 Livestock Transportation: Modified for transporting livestock, with excellent ventilation to prevent stuffiness.

 Machinery and Equipment: Suitable for transporting various medium-sized equipment, components, and construction machinery.
