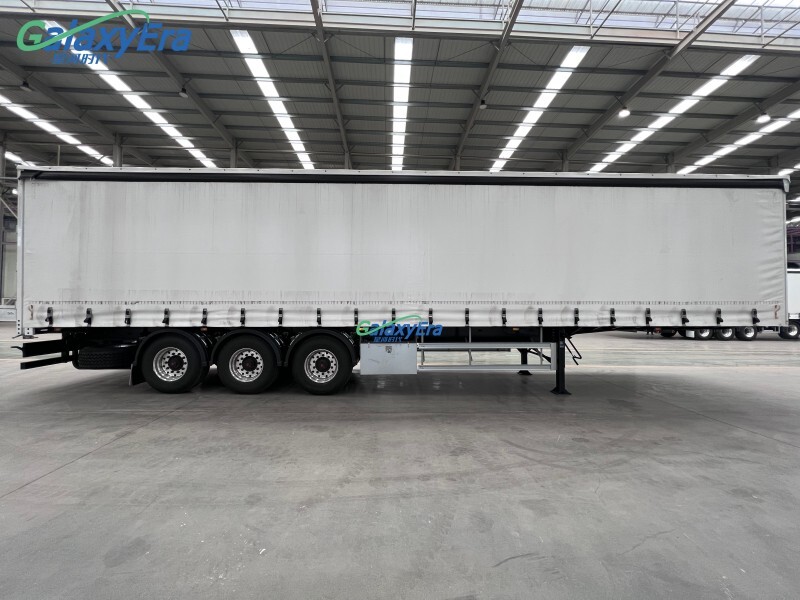

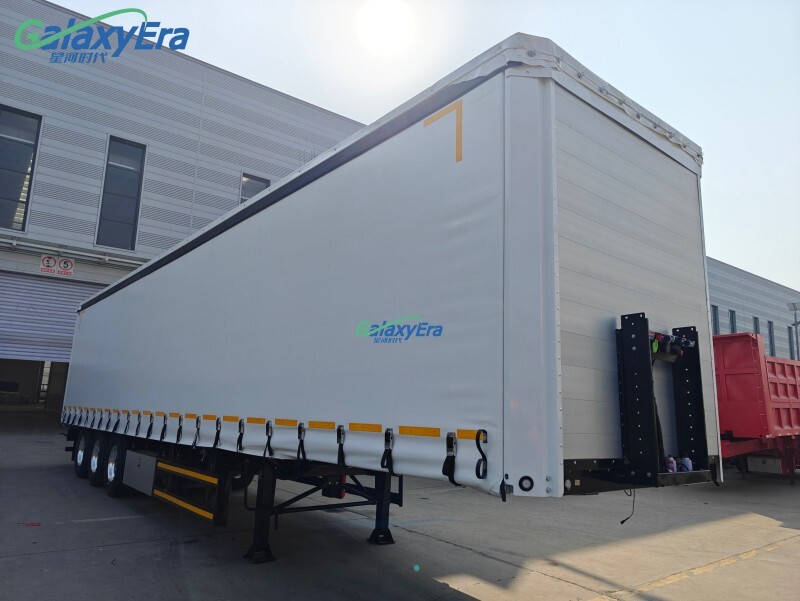

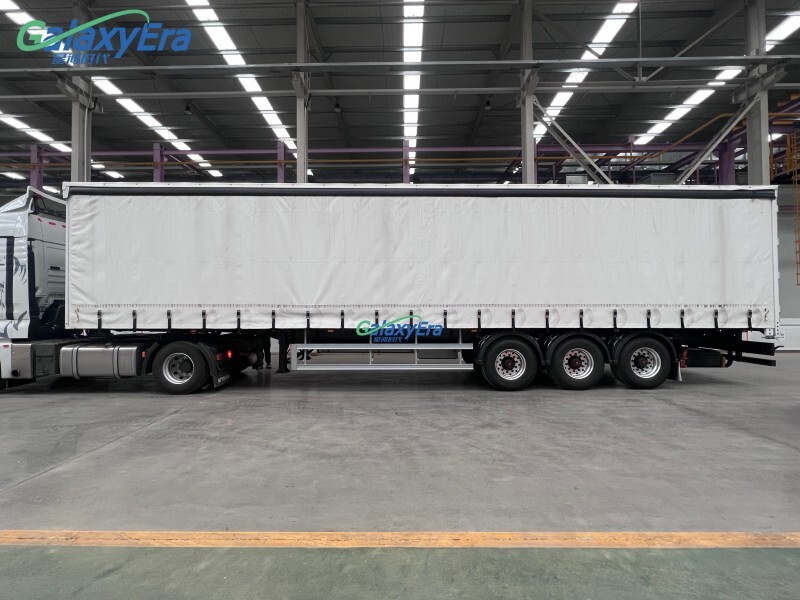

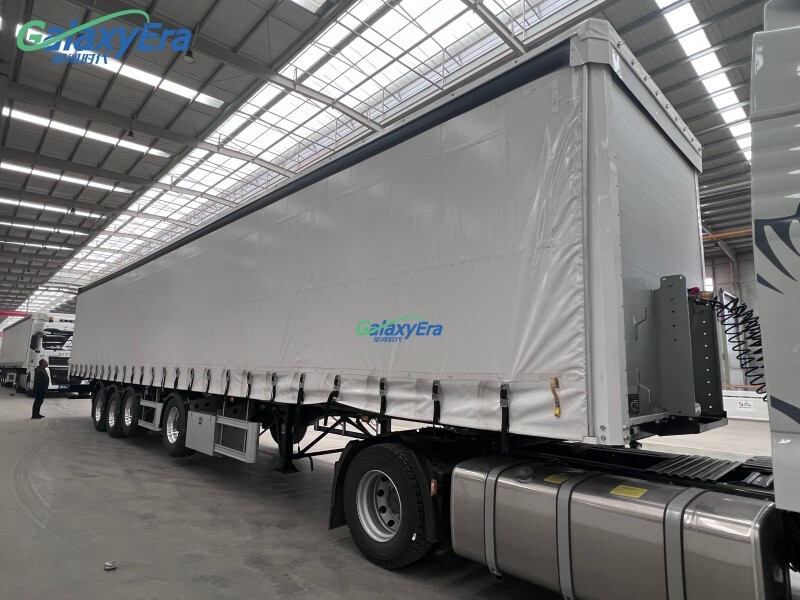

Curtain side semi trailer

The vehicle features sliding curtains on both sides that quickly open and close, facilitating loading and unloading from the sides or top, significantly improving loading and unloading efficiency.

This vehicle is widely used in the fields of fast-moving consumer goods, home appliances, building materials, express logistics, and cold chain distribution.

It is particularly well-suited for transportation scenarios requiring frequent loading and unloading, multi-point delivery, and wind and rain protection.

1. Curtain structure design for efficient and convenient loading and unloading.

It utilizes high-strength PVC curtains and an aluminum alloy slide rail system, with both curtains sliding open quickly.

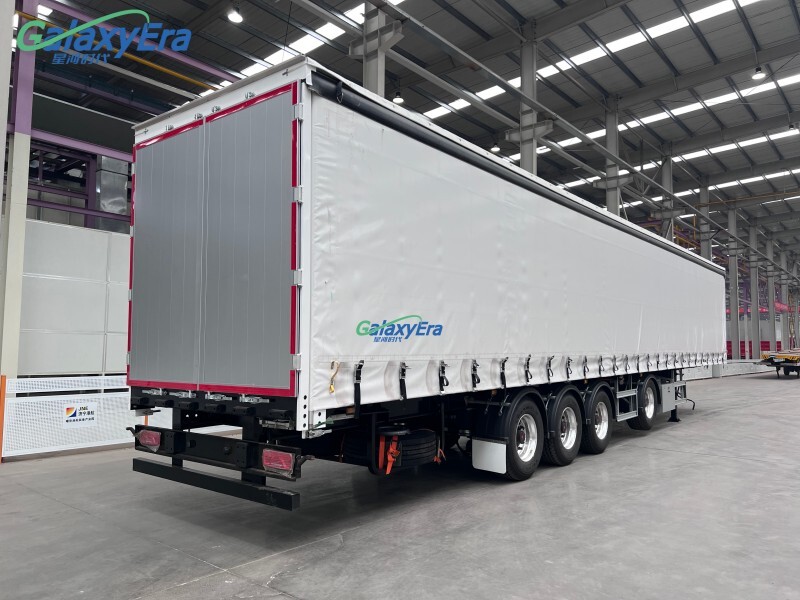

Loading and unloading requires no lifting equipment, enabling three-sided loading and unloading (left, right, and rear).

This reduces loading and unloading time by 30%-50%, significantly improving logistics turnover efficiency.

2. Strong wind and rain resistance for cargo safety.

The curtains are made of imported European PVC, which is waterproof, UV-resistant, and tear-resistant.

The top sealed crossbeam structure effectively prevents rainwater seepage.

It is suitable for transporting items that require moisture and dust resistance, such as beverages, paper products, home appliances, and building materials.

3. Lightweight structure for energy and fuel efficiency.

The main beam is made of Q550 high-strength steel, and the chassis structure is optimized, reducing weight by 10%-15%.

The aluminum alloy columns and slide rail system provide a balance of strength and lightness.

The low vehicle weight reduces fuel consumption and increases operating profitability.

4. Multiple Protections for Safe Transport

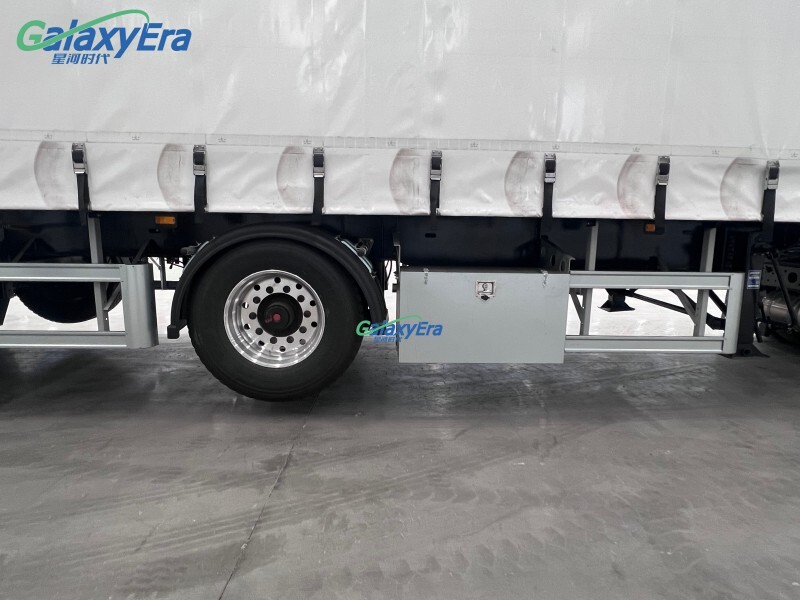

Equipped with high-strength limit locks and a stainless steel tensioning device, the curtain is securely tensioned.

The chassis features a non-slip patterned floor to prevent cargo from sliding.

Additional safety features include an anti-theft alarm, electronic lock, and reflective strips.

5. Flexible Adaptability for Smarter Transport

Optional body heights, curtain thicknesses, and interior widths.

Customizable body lift structures are available, compatible with mechanical loading and unloading lines.

A hydraulic lift system is available for facilitating the loading of extra-high cargo.

External Dimensions: 13,000 × 2,550 × 4,000 mm (customizable)

Curb Weight: Approximately 7.2 tons

Maximum Gross Vehicle Weight: 40 tons

Body Material: High-Strength PVC Cord + Aluminum Alloy Frame

Cord Thickness: 900g/m², Double-Layer PVC Coated Cord

Cord Color: Blue / Red / Gray / White (Optional)

Main Beam Material: Q550 High-Strength Steel / Q345B Manganese Steel

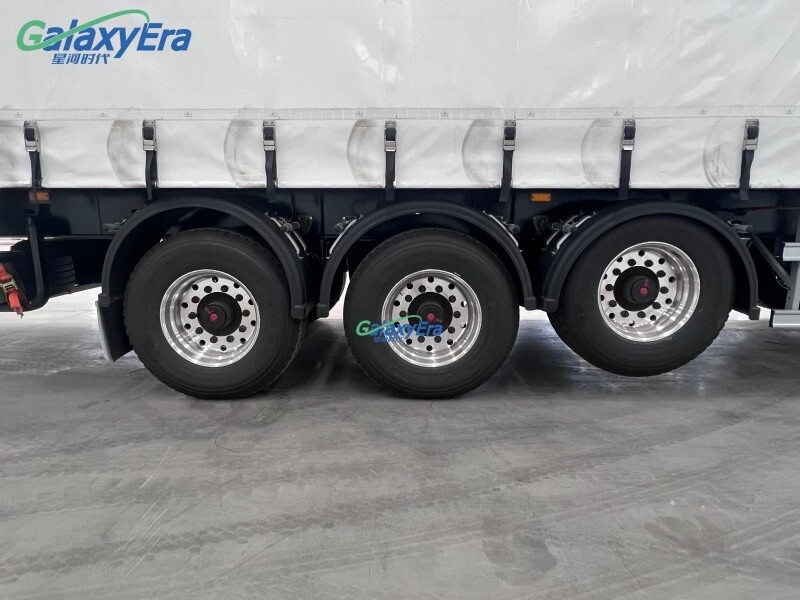

Axles: 2 / 3 (13-ton or 16-ton axles)

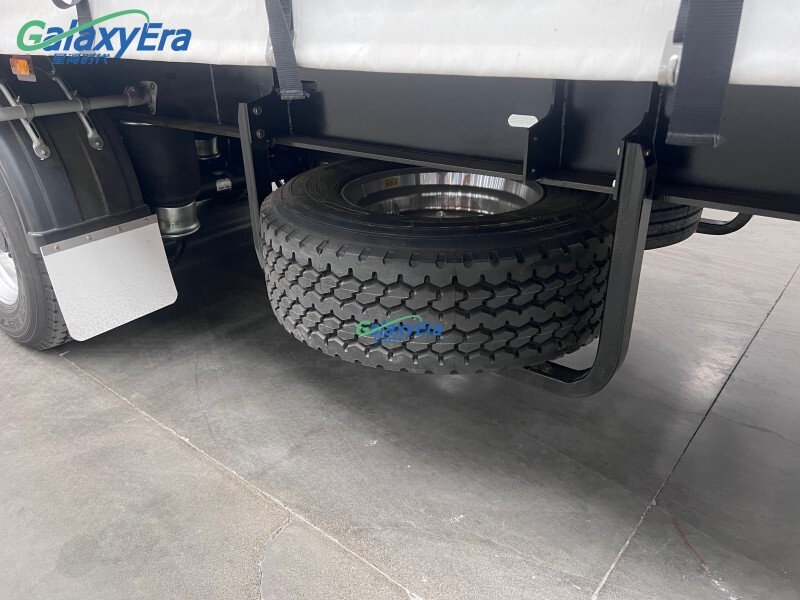

Tire Size: 12R22.5 / 11R20 (12 tires)

Suspension: Mechanical / Airbag Suspension (Optional)

Braking System: Dual-Line Air Brake + ABS

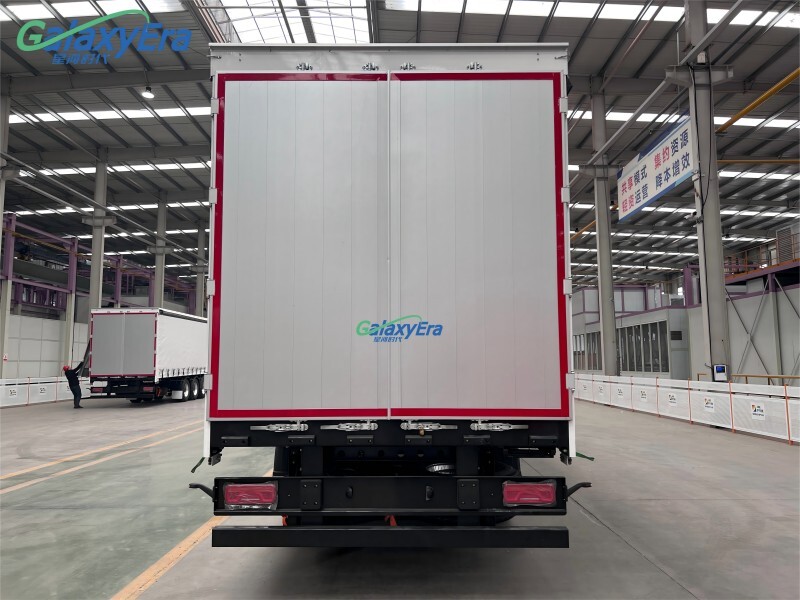

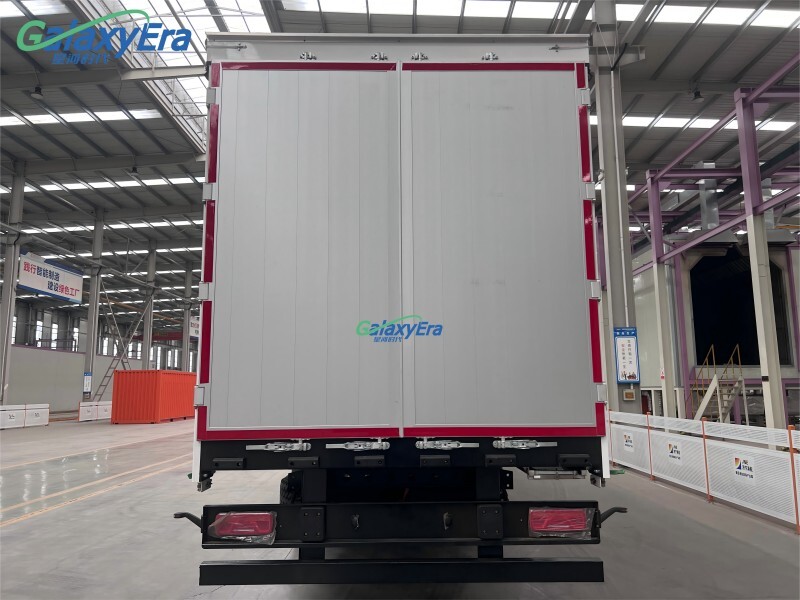

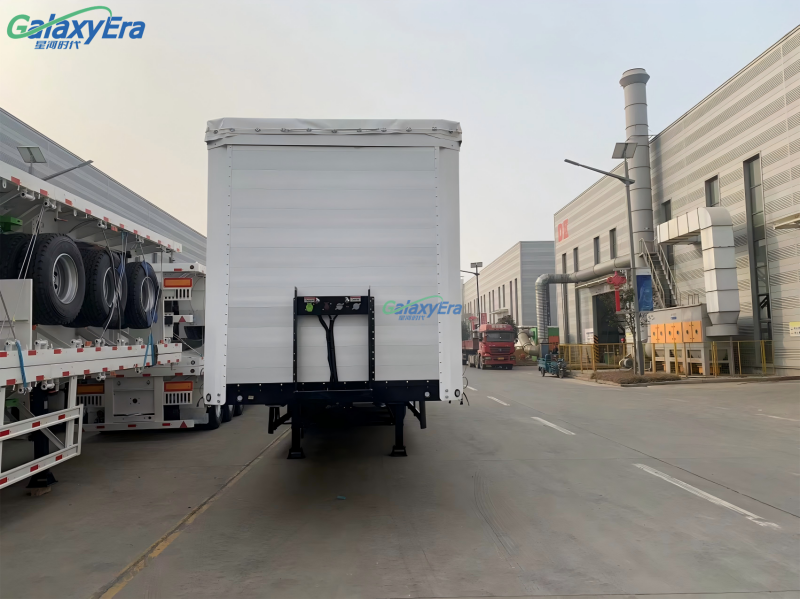

Cord Opening and Closing: Dual-Sliding + Tailgate

Outriggers: 28T Dual-Speed Outriggers

Painting: Sandblasting, Electrostatic Paint, and Anti-Rust Primer (Three-Coat Finish)

Advantages

Efficient Loading and Unloading: Three-sided opening increases loading and unloading efficiency by 50%.

Lightweight and Energy-Saving: The optimized structure makes the vehicle lighter and more fuel-efficient.

Strong Protection: Windproof, rainproof, and dustproof, ensuring cargo safety.

Compatible: Compatible with various cargo and pallet loading methods.

Safe and Reliable: Secure locking and a solid structure ensure stability and durability.

Visual Brand Display: The curtain fabric can be printed with your company logo to enhance your brand image.
